Quick answer: the Galaxy S23 family should be managed as four replacement-battery SKUs: S23, S23+, S23 Ultra and S23 FE. Shared branding does not establish a shared pack. B2B buyers should approve every finished battery against an exact device model, controlled drawing, electrical specification, installed-device result and traceable production lot.
This is the essential control behind samsung galaxy s23 battery replacement sourcing. A broad product title may be convenient for search or quotation, but it cannot tell a repair chain whether the cell outline, flex, connector, protection board, sensing configuration and adhesive system match a particular phone.
Separate the S23 Family into Four Approval Lanes
Samsung's official S23 comparison lists different typical capacities for the three original devices: 3,900 mAh for S23, 4,700 mAh for S23+ and 5,000 mAh for S23 Ultra. Samsung summarizes the Ultra specification as The battery is 5,000mAh
on its Galaxy S23 model comparison.
The later S23 FE creates a fourth lane. Samsung's official support specification gives it a 4,500 mAh typical battery and cautions that detailed specifications may vary by country, region or carrier. Review the Samsung Galaxy S23 FE specifications.
| Device lane | Official device-level capacity reference | Controlled model root example | Approval consequence |
|---|---|---|---|
| Galaxy S23 | 3,900 mAh typical | SM-S911 | Maintain a dedicated pack drawing, sample record and SKU. |
| Galaxy S23+ | 4,700 mAh typical | SM-S916 | Do not infer fit from visual similarity to the base model. |
| Galaxy S23 Ultra | 5,000 mAh typical | SM-S918 | Approve its assembly and installed behavior independently. |
| Galaxy S23 FE | 4,500 mAh typical | SM-S711 | Keep it outside the original three-model approval set. |
These figures are references for device identification and claim review. They are not ESCCharge test results and do not validate an aftermarket battery. Capacity claims must be verified for the specific battery model and test method.
Map the Full Device Code to the Finished Pack
A purchase order that says only “S23 battery” is incomplete. Model roots help separate the four devices, but regional and sales suffixes still need to be captured. Samsung's support page, for example, identifies one Galaxy S23 as SM-S911B/DS and provides a model-specific repair guide. See the Samsung SM-S911B support record.
Before approving a samsung s23 battery replacement product, require a controlled identity file containing:
- complete device model codes and intended sales regions;
- supplier pack code, buyer SKU and revision;
- cell and finished-pack label photographs;
- nominal voltage, rated or minimum capacity, typical capacity and test method;
- length, width and thickness tolerances with defined measurement points;
- flex length, route, connector position, contact orientation and polarity;
- protection-board, temperature-sensing and communication configuration;
- adhesive, insulation, pull-tab and packaging requirements;
- approved sample identity, target device, test date and reviewer.
If a quotation groups several devices under one listing, request a device-to-pack matrix supported by drawings and installed sample results. Do not approve compatibility from a marketplace title, photograph or verbal statement.
Do Not Use Capacity as a Shortcut for Compatibility
Capacity describes charge under a defined test method; it does not define a finished battery assembly. Packs with similar mAh values may differ in footprint, thickness, tab arrangement, flex route, connector, polarity, temperature sensing, protection logic or adhesive boundary. Packs with very different capacities can also appear similar in photographs.
This distinction is critical when assessing a samsung galaxy s23 ultra battery replacement. The official 5,000 mAh device reference helps normalize a supplier's claim, but it does not prove the proposed pack fits the S23 Ultra or performs correctly. Require three evidence layers:
- Identity evidence: target device, pack code, revision, label and supplier mapping.
- Construction evidence: controlled drawing, dimensions, flex, connector, polarity, insulation and protection configuration.
- Performance evidence: documented electrical screening, capacity test and installed-device behavior tied to exact samples.
A near-match in any one layer does not override a conflict in another. The buyer's approved configuration is the combined record, not a single headline specification.

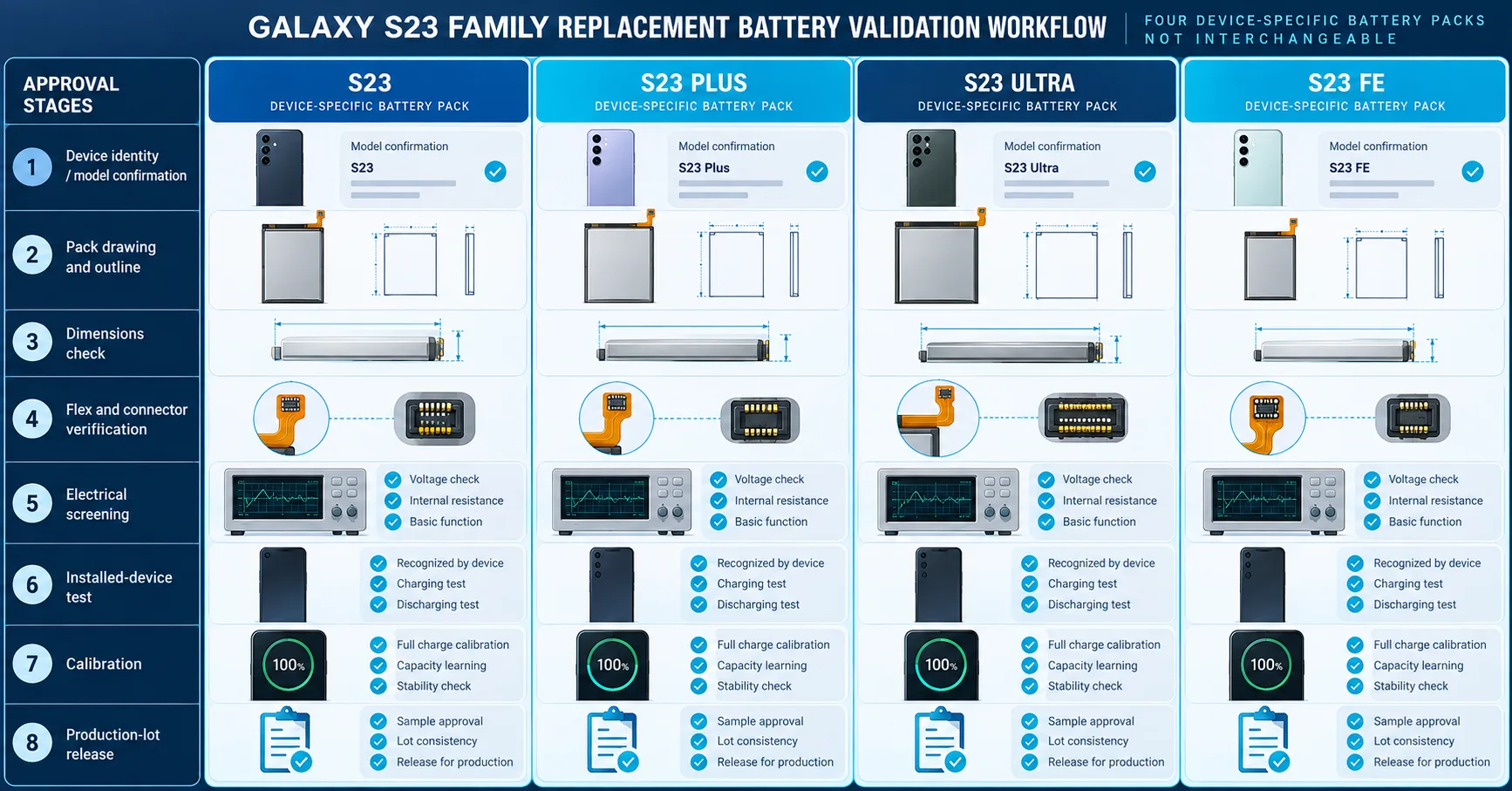

Approve Samples with Defined Stop Conditions
A phone that powers on has passed one checkpoint, not the complete approval. A marginal battery can boot and still create mechanical pressure, unstable charging, percentage jumps, rapid voltage sag, unexpected shutdown or excessive temperature. Define the method and rejection conditions before samples arrive.
| Approval stage | Evidence to capture | Stop or investigate when |
|---|---|---|
| Document review | Device mapping, drawing revision, capacity terms, label and applicable transport files | Codes conflict, revisions are missing or evidence covers another configuration |
| Visual inspection | Cell surface, edge sealing, insulation, flex, connector, marking and packaging | There is deformation, contamination, exposed conductive area or mixed labeling |
| Dimensional check | Length, width, thickness, flex reach, connector position and adhesive boundary | The pack requires force, routes incorrectly or presses another component |
| Electrical screening | Open-circuit voltage, polarity, sensing behavior and unit consistency | Values fall outside the approved specification or vary without explanation |
| Capacity validation | Charge, rest, discharge, cutoff, temperature, equipment and individual results | The method is incomplete or results cannot be linked to sample identity |
| Installed validation | Boot, charge, percentage progression, controlled load, temperature and restart | Abnormal heat, interruption, jump, shutdown or mechanical stress appears |
| Pilot lot | Multiple units, technicians and target device variants | Failures cluster by model, lot, process, material or revision |
ESCCharge's mobile phone battery incoming-inspection guide provides a broader receiving and quarantine framework. Use it with this model-level matrix so every result remains connected to the correct S23-family lane.
Include Calibration and Diagnostics in the Repair Process
Samsung includes S23-series devices in its self-repair scope in supported regions. Its official page says the Self Repair Assistant can pair the serial number of your new battery
or recalibrate the device. Samsung also recommends Samsung Members diagnostics after repair and notes that feature availability depends on device model or carrier. See the Samsung Self-Repair guidance.
Samsung's regional app guidance explicitly lists S23, S23+, S23 Ultra and S23 FE as supported models. It explains that the user can add the battery serial number and check the calibration result. Review the Samsung Self Repair Assistant instructions.
For a repair chain, record the region, app version, device software, selected part, calibration result and diagnostic outcome. This process does not prove a third-party battery is Samsung-authorized, and it does not replace identity, fit, electrical or capacity testing. Do not promise a particular system message or recognition result until verified on the exact configuration.
Keep S23 FE Outside the Standard S23 Assumption
The FE name can create a false expectation that it is a minor commercial variation. In procurement terms, it is another device lane with a different capacity reference, model family and assembly. A samsung galaxy s23 fe battery replacement requires its own drawing, samples, installed tests and lot records.
Samsung also notes that S23 FE specifications can vary by country, region or carrier. Buyers should therefore record the full device code and sales market instead of approving all FE devices from one generic sample. Regional differences may not change the battery, but that conclusion must be supported rather than assumed.
Control Commercial Orders after Engineering Approval
Engineering approval confirms that a defined pack meets the buyer's tests for a defined device lane. Commercial approval confirms that the supplier can repeat that configuration, label it correctly and notify the buyer before a relevant change. Both are required for bulk purchasing.
A useful RFQ should request:
- supported device codes listed separately for S23, S23+, S23 Ultra and S23 FE;
- finished-pack code and revision for every mapping;
- capacity terminology, nominal voltage and controlled test method;
- dimensioned drawing and tolerances;
- connector, flex, polarity, sensing and protection details;
- sample quantity and target devices for each approval lane;
- packaging, barcode, carton mark and trace-code requirements;
- change-notification and production-lot release rules;
- target market and exact configuration covered by available documentation;
- forecast, model mix and requested shipment split.
MOQ, lead time, certification availability and warranty depend on the selected model, target market, customization and commercial agreement. ESCCharge's Samsung replacement-battery supplier guide explains the wider supplier-evaluation decision without replacing S23-specific evidence.
Give every released configuration a unique SKU and barcode. At receiving, compare the production lot with the approved label, dimensions, flex route, connector orientation, packaging, electrical distribution and capacity-test evidence. Quarantine mixed labeling or unexplained revision changes before stock reaches technicians.
Field returns should be linked to device code, battery SKU, lot, technician, symptom, time in service and device condition. ESCCharge's battery warranty-claims workflow helps turn those reports into structured evidence for containment and supplier review.
Frequently Asked Questions
Can S23, S23+, S23 Ultra and S23 FE use one battery SKU?
Do not assume so. They have different device identities and official capacity references. Map and approve each finished assembly through its own drawing, dimensional checks and installed-device test.
Does 5,000 mAh prove an S23 Ultra battery is suitable?
No. It only resembles the official device-level capacity reference. Fit, connector, flex, protection electronics, test method and production consistency still need evidence.
Is calibration equivalent to battery approval?
No. Calibration is one post-repair process step. It does not replace pack identification, fit inspection, electrical screening, capacity validation or pilot-lot testing.
How should a buyer test a samsung s23 ultra battery replacement?
Use an exact S23 Ultra device lane, trace the sample identity, verify construction and electrical fields, test capacity under a documented method, then record installed charging, load, temperature and diagnostic behavior.
What changes should trigger reapproval?
Reapprove after changes to the cell, protection board, flex, connector, adhesive, insulation, dimensions, label, manufacturing site, key process or test method. Repeated field failures can also trigger focused revalidation.
Request an S23-Series Sampling Plan
Send ESCCharge the complete S23-series device codes, target market, expected SKU mix, order quantity, packaging needs and required evidence. ESCCharge can review the requested configuration and propose a sampling plan. Actual compatibility, capacity claims, documentation, MOQ, lead time and warranty must be confirmed for the specific battery and agreement before purchase.
