Quick answer: a Galaxy S22-series battery program needs three separate approval lanes: Galaxy S22, Galaxy S22+ and Galaxy S22 Ultra. The family name does not prove pack interchangeability. A professional buyer should connect every finished battery assembly to an exact device model, controlled drawing, electrical specification, installed-device test and traceable production lot before release.
This is the central procurement issue behind samsung galaxy s22 battery replacement demand. Search results often compress the family into convenient product names, while repair operations must manage three different devices and multiple regional model suffixes. A sample that powers on one phone is not sufficient evidence for the whole series.
Build Three Model-Specific Approval Lanes
Samsung's official comparison identifies different typical capacities for the three devices: 3,700 mAh for S22, 4,500 mAh for S22+ and 5,000 mAh for S22 Ultra. The same page describes the S22 as having a 3,700mAh battery
. See the Samsung Galaxy S22 model comparison.
Samsung's Australian product information also separates typical capacity from rated minimum capacity. It lists rated minimum values of 3,590 mAh, 4,370 mAh and 4,855 mAh for the S22, S22+ and S22 Ultra respectively. Samsung explains that typical capacity is the estimated average value
measured among samples under IEC 61960 conditions. Review the qualification on the official Samsung Galaxy S22 product page.
| Approval lane | Official device-level reference | Procurement consequence |
|---|---|---|
| Galaxy S22 | 3,700 mAh typical; 3,590 mAh rated minimum | Approve against the S22 device code and an S22-specific finished pack. |
| Galaxy S22+ | 4,500 mAh typical; 4,370 mAh rated minimum | Maintain a separate drawing, sample record and warehouse SKU. |
| Galaxy S22 Ultra | 5,000 mAh typical; 4,855 mAh rated minimum | Validate its assembly and installed behavior independently. |
These figures help normalize device identity and capacity terminology. They are not ESCCharge test results, and they do not validate an aftermarket pack. A supplier must provide evidence for the exact finished assembly being offered, including the capacity definition and test method behind its label claim.
Start with the Full Device Model Code
A request that says only “S22 battery” leaves too much room for error. Samsung's model families use recognizable roots—SM-S901 for S22, SM-S906 for S22+ and SM-S908 for S22 Ultra—followed by market and configuration suffixes. For example, Samsung's UK support record identifies one S22 as SM-S901B/DS. Its model-specific manuals and support demonstrate why buyers should capture the full code rather than infer compatibility from a sales name. See the Samsung SM-S901B support page.
Before approving a samsung s22 battery replacement SKU, create a controlled identity record containing:
- complete target-device model codes and sales regions;
- supplier battery code, internal SKU and revision;
- cell label and finished-pack label photographs;
- nominal voltage, rated capacity and typical-capacity terminology;
- length, width and thickness tolerances at defined points;
- flex length, route, connector position, contact orientation and polarity;
- protection-board, thermistor and sensing configuration;
- adhesive, insulation, pull-tab and packaging specification;
- approved sample ID, test date, device code and reviewer.
If a supplier groups several device codes under one galaxy s22 battery replacement listing, request a written device-to-pack matrix supported by drawings and sample IDs. A product title, photograph or equal capacity is weak evidence. Approve the mapping only after mechanical and functional results agree.
Capacity Does Not Establish Compatibility
Capacity describes stored charge under a stated test framework; it does not define the geometry or electronics of a finished replacement assembly. Two packs can display similar mAh values while differing in footprint, thickness, connector, flex position, polarity, protection components, temperature sensing or adhesive boundary. Conversely, a physically similar pack can carry a capacity claim that uses a different definition or unsupported test condition.
Apply three evidence levels to every quotation:
- Identity evidence: target device code, finished-pack code, label revision and supplier mapping.
- Construction evidence: controlled drawing, tolerance, flex and connector photographs, polarity, protection and insulation details.
- Performance evidence: documented bench screening, capacity testing and installed-device behavior tied to the exact sample.
A samsung galaxy s22 ultra battery replacement should therefore be assessed in an S22 Ultra device lane. The 5,000 mAh device reference is useful for reviewing claims, but it cannot replace fit checks, connector inspection, electrical screening or installed testing.
Approve Samples Beyond a Power-On Test
“The phone boots” is a useful checkpoint, not a release decision. A marginal pack may power on and later show abnormal heat, percentage jumps, voltage sag, charging interruptions, unexpected shutdown or mechanical pressure. Define test conditions before samples arrive so different suppliers and revisions are compared consistently.

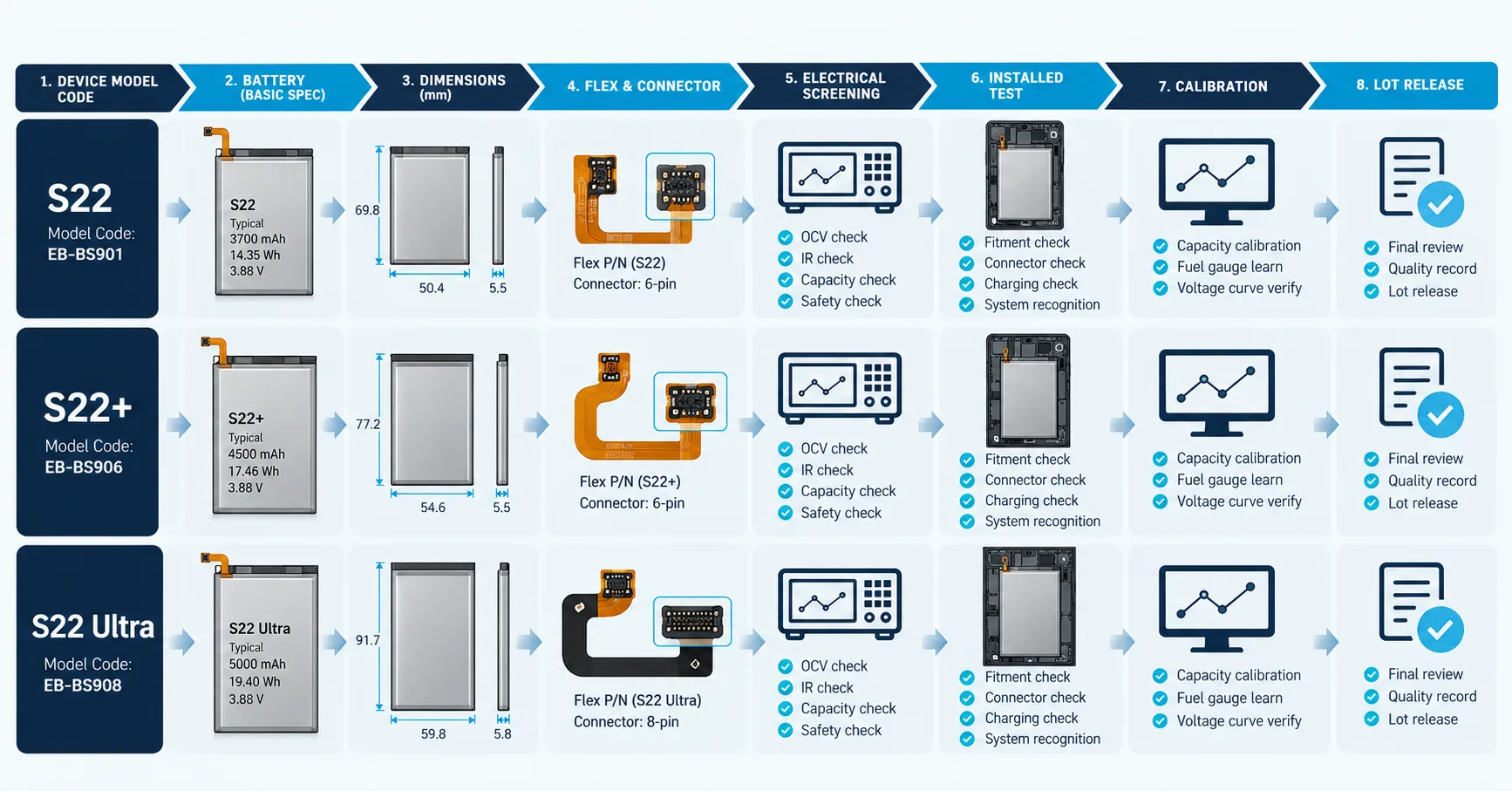

| Stage | Evidence to record | Stop or investigate when |
|---|---|---|
| Document review | Device mapping, drawing revision, capacity terms, label and relevant transport files | Codes conflict, revision is missing or evidence describes another pack |
| Visual inspection | Cell surface, edges, insulation, flex, connector, markings and packaging | There is deformation, contamination, exposed conductive area or mixed labeling |
| Dimensional check | Length, width, thickness, flex reach, connector position and adhesive boundary | The pack requires force, presses nearby parts or routes incorrectly |
| Electrical screening | Open-circuit voltage, polarity, sensing behavior and unit consistency | Values fall outside the approved specification or vary without explanation |
| Capacity test | Charge, rest, discharge, cutoff, temperature, equipment and result | The method is undocumented or results cannot be linked to sample identity |
| Installed test | Boot, charging, percentage progression, controlled load, temperature and restart | Abnormal heat, charging interruption, shutdown or fit stress appears |
| Pilot lot | Multiple units, technicians and real target-device variants | Failures cluster by model, lot, technician, material or revision |
ESCCharge's mobile phone battery incoming-inspection guide provides a broader framework for sampling, quarantine and evidence capture. Use it with this S22-specific matrix rather than treating one as a substitute for the other.
Treat Calibration as a Controlled Process Step
A replacement operation may include more than physical installation. Samsung's self-repair information lists the Galaxy S22, S22+ and S22 Ultra among supported devices. Samsung states that its Self Repair Assistant can pair the serial number of the new battery
and recalibrate the device. See the Samsung Self Repair program page.
Samsung's separate app guidance says S22 and S22+ support battery calibration, while the S22 Ultra workflow covers screen, battery and charging-port calibration. This is an official software-workflow statement, not evidence that any third-party battery is recognized, authorized or guaranteed to display a particular status. Review the Samsung Self Repair Assistant guidance.
For a repair chain, document the supported region, app availability, device software state, calibration step, result and exception path. Do not promise a customer message, diagnostic state or battery-health display until it has been verified on the exact device, software version and replacement configuration.
Separate Engineering Approval from Commercial Approval
Engineering approval confirms that a defined pack works within the buyer's test conditions for a defined device lane. Commercial approval confirms that the supplier can repeat that configuration, package it correctly and notify the buyer before material or process changes. Both decisions are necessary before scale purchasing.
A useful RFQ for an s22 battery replacement program should request:
- supported device codes listed separately by model and region;
- finished-pack code and revision for each device mapping;
- capacity definition, nominal voltage and controlled test method;
- dimensioned drawing with tolerances;
- connector, flex, polarity, protection and sensing details;
- sample quantity and target devices for each lane;
- packaging, barcode, carton mark and trace-code requirements;
- change-notification and production-lot approval rules;
- target market and exact configuration covered by available compliance or transport evidence;
- forecast, model mix and requested shipment split.
MOQ, lead time, certification availability and warranty depend on the exact model, target market, customization and commercial agreement. Obtain written confirmation instead of extending a general supplier statement to every S22-family pack. The ESCCharge Samsung replacement-battery supplier guide explains wider vendor-qualification questions around technical communication, samples, documentation and change control.
Control Production Lots and Mixed-SKU Orders
After sample approval, protect the decision through production and warehousing. Give each model-specific configuration a unique SKU and barcode. Receiving labels should expose the supplier lot, production date or trace code, pack revision and approved device mapping. Physically separate S22, S22+ and S22 Ultra stock so visual similarity cannot override controlled identity.
Before releasing each lot, compare it with the approved reference for label revision, dimensions, flex route, connector orientation, packaging, electrical distribution, capacity-test evidence and installed-device behavior. Quarantine unexplained substitutions, mixed model labels or revision changes before stock reaches technicians.
After release, connect every return to device code, battery SKU, lot, technician, symptom, time in service and device condition. The ESCCharge mobile phone battery warranty-claims workflow shows how to turn field reports into structured evidence for containment and supplier review.
Frequently Asked Questions
Can S22, S22+ and S22 Ultra use one replacement battery?
Do not assume so. Samsung publishes different device-level capacity references, and finished assemblies must be mapped by exact device code, dimensions, flex, connector, electrical configuration and installed results. Maintain three approval lanes unless controlled evidence proves a specific mapping.
Does Samsung's official capacity validate a supplier pack?
No. Official capacity figures describe Samsung devices under Samsung's definitions and conditions. The supplier must provide traceable evidence for its own finished battery, capacity claim and test method.
Is calibration the same as battery quality approval?
No. Calibration is one repair-process step in supported workflows. It does not replace identity, fit, electrical, capacity, installed-performance or production-consistency testing, and it does not prove a third-party product is Samsung-authorized.
How many samples should a B2B buyer test?
There is no universal number. Set sample and pilot quantities according to order size, model mix, supplier history, device variation and field-failure cost. Record the rationale and avoid relying on a single golden sample.
What changes should trigger reapproval?
Reapprove after changes to the cell, protection board, flex, connector, adhesive, insulation, dimensions, label, manufacturing site, key process or test method. Repeated field failures or an unexplained data shift can also trigger focused revalidation.
Prepare a Model-Specific S22 RFQ
Send ESCCharge the complete S22-series device codes, target market, expected model mix, order quantity, packaging needs and required evidence. ESCCharge can review the requested configuration and propose a sampling plan. Actual compatibility, capacity claims, certification availability, MOQ, lead time and warranty must be confirmed for the specific battery model and agreement before purchase.
External Source References
- Samsung Electronics America — Compare the Differences Between the Galaxy S22 Models.
- Samsung Electronics Australia — Galaxy S22 Product Information and Battery Capacity Qualifications.
- Samsung Electronics UK — Galaxy S22 SM-S901B/DS Support Page.
- Samsung Electronics UK — Samsung Self Repair Program.
- Samsung Electronics Latin America — Samsung Self Repair Assistant App Guidance.
