Quick answer: Motorola Moto G replacement batteries must be selected by the exact device model, model year and battery assembly—not by “Moto G” alone. The family includes base G, G Play, G Power, G Stylus and regional variants across many generations. A B2B buyer should map the full XT code to a controlled battery code, drawing, approved sample and production-lot record before stocking a SKU.
The keyword moto g battery replacement hides a large catalog problem. Two phones can share a 5,000 mAh device specification and still require different packs. Conversely, one verified battery code may appear across several device models. The commercial task is to prove the mapping without letting a broad product title become the evidence.
Why Moto G Requires a Catalog Strategy
The Moto G name has been reused across years, price tiers and markets. “Moto G 5G” may refer to different annual generations, while Power and Stylus branches add their own XT codes and pack assemblies. A repair distributor that stores only the sales name risks wrong picks, duplicate SKUs and warranty claims that cannot be traced to a precise configuration.
The keyword-gap data supplied for this project confirms mixed informational and commercial demand. The strongest relevant terms include “moto g battery” at 140 monthly searches with KD 19, “moto g battery replacement” at 90 with KD 15, and several Power, Stylus and year-specific queries in the 40–70 range. These third-party planning estimates are directional rather than guaranteed traffic forecasts.
Competitor catalog pages reveal the same structural challenge. MobileSentrix lists one JK50 page against multiple G Power, G Play, G9 Play, G7 Power and other Motorola devices, while a separate QF50 page maps several 2023–2024 devices. These listings are useful market evidence, but they are not a substitute for the buyer's own compatibility approval. See the MobileSentrix JK50 catalog mapping and its QF50 device listing.

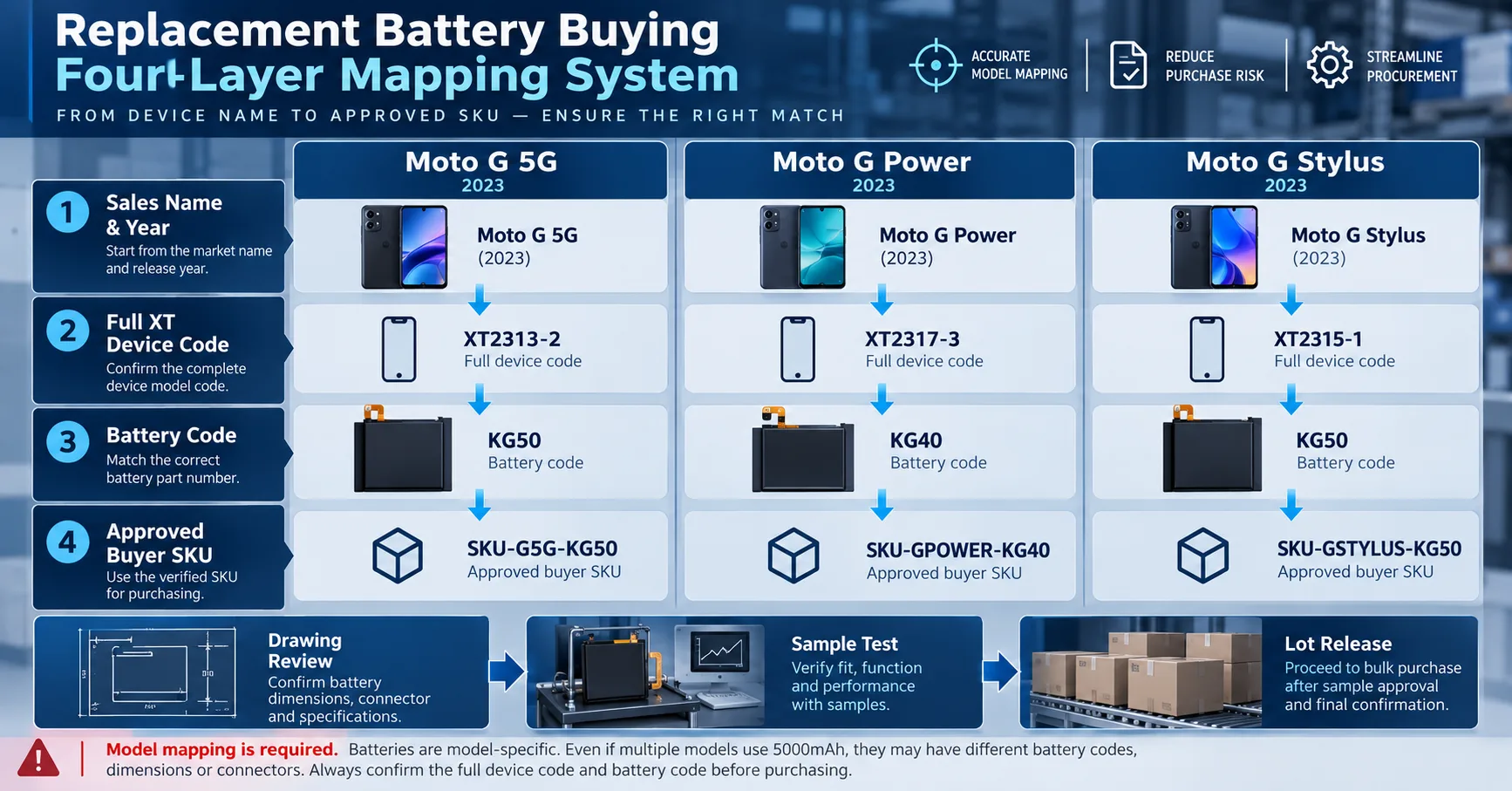

Build the Mapping in Four Layers
Use four linked identity fields for every moto g battery record:
- Commercial name: for example Moto G 5G, Moto G Power 5G or Moto G Stylus 5G.
- Model year and market: because the same name can be reused and carrier configurations may differ.
- Full XT code: including the suffix shown on the target device or regulatory record.
- Battery assembly identity: supplier code, battery code, part number, label revision and buyer SKU.
A useful mapping table should not contain unchecked “compatible with” text. Each row needs a source, sample ID, drawing revision, installed-device result and approval status. Use “unverified,” “sample pending,” “pilot approved” and “production approved” as distinct states.
| Catalog field | Why it matters | Evidence required |
|---|---|---|
| Sales name and year | Prevents different generations from collapsing into one line | Device label, settings record or official specification page |
| Full XT model | Separates region and carrier variants | Photograph or controlled device record |
| Battery code and part number | Connects the device to a physical assembly | Pack label, supplier drawing and revision |
| Construction | Controls fit, flex and electronics | Dimensions, connector, polarity, protection and sensing details |
| Approval status | Stops an untested cross-reference entering stock | Sample report, reviewer and date |
Use Official Capacity Data as a Reference, Not a Match Key
Motorola's official specifications list a 5,000 mAh battery for Moto G 5G (2024), model series XT2417. The same official capacity appears for Moto G Power 5G (2024) and Moto G Stylus 5G (2024). However, competitor catalogs associate those branches with different battery codes: QF50 for certain Moto G 5G models, QA50 for Moto G Power 5G XT2415, and QS50 for Moto G Stylus 5G XT2419.
This is the clearest reason not to map by capacity. Motorola states Battery Size - 5000mAh
for the Moto G 5G (2024) and again for the Moto G Stylus 5G (2024). Equal device-level capacity does not prove equal outline, thickness, flex, connector, polarity or protection-board behavior.
For a moto g power battery replacement, the buyer should combine the XT code with a controlled drawing and sample rather than extend a Power-family assumption across years. MobileSentrix, for example, maps QA50 to XT2415 (2024) and also lists Moto G55 5G XT2435. Treat that as a cross-reference to investigate, not automatic approval. Review the competitor QA50 mapping.
Verify the Finished Battery Assembly
A catalog row is ready for sampling only when its construction data is complete. Ask for a dimensioned drawing with tolerances, flex geometry, connector position, polarity, insulation, protection-board and temperature-sensing configuration. Require photographs that show the actual label revision and assembly, not a generic product rendering.
The label capacity should identify whether it is rated, minimum or typical and should be supported by a defined test method. Record charge voltage, rest time, discharge rate, cutoff voltage, temperature, equipment and individual sample results. Motorola's device specification can help identify an implausible claim, but it cannot validate the supplier's pack.
Mechanical approval comes before functional approval. Measure length, width and thickness at defined points. Confirm that the flex reaches without tension, the connector seats correctly, and the battery does not press the display, rear cover or adjacent components. Do not force a pack that appears “almost identical.”
Run a Model-Specific Sample Approval
| Stage | Record | Reject or investigate when |
|---|---|---|
| Identity review | Sales name, year, XT code, battery code and revision | A code is missing, conflicting or copied from another generation |
| Visual inspection | Cell surface, edges, insulation, flex, connector and label | There is deformation, damage, contamination or mixed labeling |
| Dimensional check | Drawing values and measured samples | A value is outside tolerance or installation needs force |
| Electrical screening | Open-circuit voltage, polarity, sensing and sample distribution | Results conflict with the approved specification |
| Capacity test | Controlled method, raw results and sample identity | Conditions are missing or results cannot be traced |
| Installed test | Boot, charging, percentage progression, load, temperature and restart | There is abnormal heat, interruption, jump or shutdown |
| Pilot lot | Multiple units, devices and technicians | Failures cluster by model, lot, material or process |
ESCCharge's mobile phone battery incoming-inspection guide helps convert these gates into a receiving workflow. Keep the approved reference, test equipment, sampling rule and quarantine authority documented.
Separate Stylus, Power and Play Inventory
A moto g stylus battery replacement should not be selected from the word “Stylus” alone. The 2024 XT2419 branch is listed by Motorola with 5,000 mAh, 30 W TurboPower and 15 W wireless charging, while older Stylus generations have different device structures. The battery must be confirmed by the full model and pack assembly.
Power and Play names are equally reusable. A wholesale catalog should display the year and XT code beside the customer-facing name. If one verified pack supports multiple models, keep one physical SKU with a controlled compatibility table rather than creating duplicate stock records. If evidence differs by variant, split the approval even when the supplier uses one product page.
For a motorola g battery replacement assortment, a practical inventory hierarchy is:
- Core stock: repeat demand, verified mapping and stable replenishment.
- Project stock: approved for a named customer or refurbishment batch.
- Sample pending: demand exists but fit or functional evidence is incomplete.
- Legacy controlled: low-volume models with storage-age and replenishment limits.
- Do not order: ambiguous mapping, mixed labels or failed approval.
Control Repeat Lots and Supplier Changes
Once a sample is approved, the production lot must remain tied to the same configuration. Assign a unique barcode to the buyer SKU and record supplier lot, production date or trace code, pack revision and approved XT mapping. Compare incoming lots with the approved label, dimensions, flex route, connector orientation, electrical distribution and capacity-test evidence.
Require notification before changes to the cell, protection board, flex, connector, adhesive, insulation, label, manufacturing site, key process or test method. Quarantine unexplained substitutions even if the battery code remains unchanged.
Connect field returns to device model, year, XT code, battery SKU, lot, technician, symptom and time in service. ESCCharge's battery warranty-claims workflow explains how to turn those records into supplier evidence rather than isolated anecdotes.
Prepare a Moto G Battery RFQ
The RFQ should list requested device models and years, full XT codes, expected order mix, packaging, labeling and documentation needs. Ask the supplier to return a proposed device-to-pack matrix instead of a single price for “Moto G batteries.”
MOQ depends on the selected model and customization scope. Lead time depends on model, customization and quantity. Warranty and certification availability must be confirmed for the specific product, target market and agreement. ESCCharge's phone-battery supplier guide provides the broader vendor-evaluation context.
Frequently Asked Questions
Are all 5,000 mAh Moto G batteries interchangeable?
No. Official Motorola pages show the same capacity across several 2024 devices, while aftermarket catalogs associate them with different battery codes. Verify XT model, drawing, flex, connector and installed results.
Can one battery code support multiple Motorola phones?
It may, but the mapping needs evidence. Confirm every device row through controlled documentation and sample testing; do not treat a competitor title as final approval.
Should the model year appear in a wholesale catalog?
Yes. Reused names such as Moto G 5G, Power and Stylus make the year and full XT code essential for correct selection and warranty traceability.
Does Motorola's capacity specification validate an aftermarket pack?
No. It describes the device. The replacement-battery supplier must support its own assembly, label claim and test method.
What triggers reapproval?
Reapprove after a material, cell, protection-board, flex, connector, adhesive, dimension, label, site, process or test-method change. Repeated field failures can also trigger focused revalidation.
Request a Model-Mapped Sample Plan
Send ESCCharge the Moto G sales names, years, complete XT codes, expected SKU mix, order quantity and packaging requirements. ESCCharge can review the requested configurations and propose a sampling plan. Compatibility, capacity claims, documentation, MOQ, lead time and warranty must be confirmed for each selected battery and agreement.
External Source References
- Motorola Support — Specifications for Moto G 5G (2024).
- Motorola Support — Specifications for Moto G Stylus 5G (2024).
